Abstract

Infertility is a common disease that affects 15 to 20% of couples at some point in their lives. Among infertile couples, male factor accounts for 50% of infertile cases. Assisted reproductive techniques are the gold standard approach in case of failure in medical or surgical treatments. Moreover, the role of the urologist in these approaches is to provide appropriate sperm on the day of oocyte pick-up. However, sperm retrieval procedure is quite different in azoospermic and non-azoospermic men. Although most cases of infertile patients are not azoospermic, their ejaculation disorder prevents obtaining sperm for assisted reproductive techniques. This review article explains common problems of sperm retrieval in non-azoospermic patients with persistent ejaculatory dysfunction and introduces some management strategies. In fact, it is possible to design a classic approach for managing such patients, which definitely reduces the problems faced by clinicians as well.



Keywords: Azoospermia, Ejaculation, Infertility, Semen analysis, Sperm retrieval


To cite this article:


Full Text

Introduction
Infertility is a common disease that has received a lot of attention today and effective treatments have been developed for the disorder (1). If the disorder cannot be treated by lifestyle and behavioural modifications in the patient's life, or medical and surgical procedures, assisted reproductive techniques become the perfect solution for infertile cases (2). Sperm extraction is important when performing assisted reproductive techniques (3). Men who are candidates for sperm retrieval can often provide the ejaculated sperm and only 15 to 20% are azoospermic cases (4).
Although a limited range of infertile men are azoospermic, nearly 10 to 15%, more than 80% of literature on sperm retrieval has been dedicated to studies on this group (5). However, even a candidate for assisted reproductive technique (ART), with normal spermatogenesis and no obstruction, can impose a serious challenge for infertility centers; in other words, ejaculation disorder and obtaining the sperm make sperm retrieval a dilemma for the clinicians (6). There are also important controversies in certain groups about the best method of sperm retrieval (7). Therefore, in this article, the methods of obtaining sperm in patients with permanent ejaculation disorders are assessed and the appropriate strategy for treatment is commented and explained.
Physiology of ejaculation: After producing and storing sperm, it is transferred and inserted into a woman's vagina by ejaculation. Therefore, ejaculation plays an important role in fertility. In cases of assisted reproductive techniques and in situations where sperm are produced but ejaculation is impaired, appropriate methods will be needed to obtain sperm, which are sometimes costly and time consuming procedures. Familiarity with the physiology and pathophysiology of ejaculation disorders helps to find a suitable treatment for these conditions. For this purpose, the relevant literature about the disorder and treatment options is discussed in this paper (8).
Although ejaculation occurs following somatic and controlled sexual activity, it is neurologically controlled by the sympathetic and parasympathetic nerves. The organs involved in ejaculation are distal part of the epididymis, vas deferens, the seminal vesicle, ejaculatory duct, the prostate, the prostatic urethra, the bladder neck, and anterior urethra, respectively. Ejaculation consists of two main parts, emission and expulsion. Emission is defined as entry of semen to posterior urethra and expulsion comprises expelling the semen out of anterior urethra (9).
During emission, sympathetic nerves stimulate contraction of muscles of epididymis, vas deference, seminal vesicles, ejaculatory duct, and drive forward the semen to the posterior urethra. These nerves simultaneously contract the bladder neck and close it in order to prevent semen leakage into bladder and its mixing with urine. Therefore, at the end of emission, the semen pools in the posterior urethra between bladder neck (internal urinary sphincter) and membranous urethra (external urinary sphincter) (10).
During expulsion, rhythmic contractions of the bulbospongiosus, ischiocavernosus, and pelvic floor muscles increase the pressure in the posterior urethra, and the semen is expelled from the urethra. The key factor is that during these contractions, the smooth muscle of the bladder neck remains closed while the striated muscle of the external sphincter opens. These contractions are controlled by somatic nerves (11).
Pathophysiology of ejaculatory disorders: Emission disorder occurs with sympathetic dysfunction. Anejaculation is the prominent clinical presentation. Damage to sympathetic fibers of the epididymis, seminal vesicles, and ejaculatory ducts can stop contractions of this pathway and the semen cannot be pushed into the posterior urethra. Retroperitoneal and pelvic surgeries, spinal cord injuries, or diseases and metabolic peripheral neuropathies such as diabetes will likely damage the emission by this mechanism (8).
Bladder neck dysfunction, causing the semen to travel into the bladder, can be due to damage to the muscles of the bladder neck during urological surgery, damage to the nerves of the bladder neck during pelvic and retroperitoneal surgeries, or as a result of peripheral neuropathies such as diabetes. Sometimes, medications with properties of alpha-blocker result in retrograde ejaculation in the presence of a healthy bladder neck and intact nerves (9).
In some cases, there is no organic reaction mechanism for anejaculation. Psychogenic and psychiatric disorders can cause severe ejaculation disorder by disrupting central neurotransmitters. In addition, psychiatric drugs can impair ejaculation by manipulating the dopamine, histamine, serotonin, and other receptors, even without the inhibitory effect of alpha-agonist (10).
Sperm retrieval in retrograde ejaculation: Ejaculation is based on rhythmic simultaneous contractions of pelvic muscles and closure of bladder neck. When the former fails, anejaculation happens and when the latter fails, retrograde ejaculation occurs. The main aetiologies of retrograde ejaculation are listed in figure 1 (12). There are several methods to retrieve sperm in retrograde ejaculation, which are summarized in table 1 (12).
Bladder neck reconstruction is highly invasive for restoring antegrade ejaculation (8). Acceptable approach for retrograde ejaculation is sperm retrieval from post-ejaculatory urine specimen if the condition cannot be improved medically as shown in figure 2 (12-14). Medical therapy is based on prescription of remedies, which physiologically help bladder neck closure and pelvic muscle contraction. The most commonly used medications are listed in table 2 (12).
Alpha agonists are the mainstay of therapy (15) with Imipramine as the most common used medication (16) which restores ejaculation after one to two weeks (12). If the medical approach fails, ART with post-ejaculatory sperm retrieval from bladder is recommended. Due to the deteriorating effect of urine on sperm, preparations are needed to decrease these negative effects such as administration of oral sodium bicarbonate for effective urine alkalinisation and   buffer instillation to the bladder after voiding and before ejaculation which are presented in table 3 (12). Bladder should be emptied by voiding or catheterization before and after ejaculation in order to prevent the mixing of semen with urine. Oral treatment and vesical instillation can be used together (12, 13, 16).
Sperm retrieval in anejaculation: Anejaculation occurs because of inability of pelvic muscles to contract. The most common aetiologies are diabetes mellitus and RPLND (19). Available options are sorted according to their priority in table 4 (20).
Medical therapy: Sympathomimetics are drugs of choice (19) with Imipramine and pseudoephedrine as the most common prescribed ones at the same dose used for retrograde ejaculation with 40 to 60% success rate (20). In some patients, anejaculation is converted into retrograde ejaculation and the condition is easier to manage (20). Penile vibratory stimulation (PVS) has success rate of 65% to 83% in cases of anejaculation provided that spinal reflex is intact (21). Its application has been explained in spinal cord disorder section.
Electro-ejaculation: In these cases, Electro-ejaculation (EE) needs anesthesia and is more invasive (21). The technique is similar to the method used for patients with spinal cord injury.
Sperm retrieval in spinal cord injury: Severity of lesion and involved segments are main factors affecting ejaculation in spinal cord disorders (SCD). Overall, in 3 to 15% of cases, ejaculation ability is preserved but majority of patients suffer from infertility (22). The current trend is using sperm retrieval and ART. However, in cases who are reluctant to use these services but have enough time and patience, combination of alpha agonist and PVS helps to collect semen (23). The available options are listed in table 5 (22, 24). There is no difference in quality of sperm and pregnancy rate among patients who used sperm with retrieval techniques and the methods are selected based on feasibility and the degree of invasiveness (25-27). The recommended approach to retrieve sperm from patients with spinal cord disorders is demonstrated in figure 3 (22, 24, 28).
Although antegrade ejaculation might be restored by alpha agonists (26), PVS and EE in SCD are highly recommended for retrograde ejaculation and concomitant bladder preparation is mandatory (22). Applying any techniques for retrieving sperm can induce autonomic dysreflexia and life threatening hypertension (26) in patients with lesion higher than T7 (31). Continuous or frequent blood pressure monitoring and administration of sublingual nifedipine (20 mg) or captopril (25 mg), 15 min before manipulation are preventive measures (32, 33).
Prostate massage: Naturally, there is no sperm in ejaculatory duct and seminal vesicles. However, in these patients, accumulated sperm occupy seminal vesicle and ejaculatory duct due to inability in regular semen evacuation. Although the prostate massage is successful in 70% of patients, fewer than half of these cases have sperm in their semen. Even IUI can be recommended depending on the quality of sperm retrieved (34). Sperm can be found in 80% of lesions higher than T10 and 18% of lesions lower than T10, which raises a debate on the application of the method in the second group (35).
Penile vibratory stimulation: PVS success rate has been reported to be around 12 to 80% in heterogeneous populations with SCD (34). The strategies to increase success rate of PVS are listed in table 6. If the response does not occur after 15 min, it is unlikely to achieve success with continuing the procedure and it is better to proceed to the next step (37). Relative contraindications of PVS are penile prosthesis and severe irritation of the glans (36).
Electro-ejaculation: In the absence of any major anorectal problems, the technique is applied (10-15 v, 30 mA) for 3 to 5 min (37). The lowest possible voltage is induced first and then increased gradually. It is possible to obtain more antegrade semen by intermittent rather than continuous stimulation (32, 33). Most of the patients can tolerate the procedure without any anesthesia; however, pain sensation level should be assessed to ensure that patients would feel no pain (32, 33). Ejaculation can occur without erection; therefore, milking and catheterization must be done at the end of any failed procedure and specimen should be checked for sperm (17). The procedure must be stopped if rectal temperature reaches 38°C or in voltages higher than 30 (37).
Surgical techniques: Through common techniques including sperm aspiration from seminal vesicle, epididymis or testis, enough sperm can be obtained. However, spermatogenesis deteriorates gradually after having 12 years of neurological disorders. If the aspiration techniques fail, micro-TESE and conventional TESE are recommended in testes sized less than 10 ml and larger than 10 ml (38). Sperm cryopreservation is not recommended in SCD because using fresh sperm results in significantly better findings (65% vs. 25%). Sperm cryopreservation is only recommended when there is risk of azoospermia or in the first two weeks of trauma when quality of sperm has not been deteriorated (36).

Conclusion
One group of candidates for sperm retrieval in ART are non-azoospermic patients with persistent ejaculatory dysfunction. In literature, the methods dealing with these conditions have been discussed sporadically. In this review, it was shown that designing a classic approach for these patients is a feasible alternative. In fact, applying these approaches in infertility centers reduces the problems of patients and clinicians.

Conflict of Interest
Authors declare no conflict of interest.




Figures, Charts, Tables

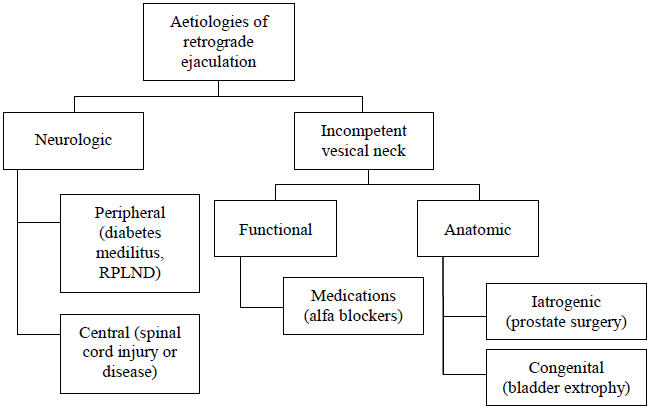

Figure 1. Aetiology of retrograde ejaculation

Figure 1. Aetiology of retrograde ejaculation

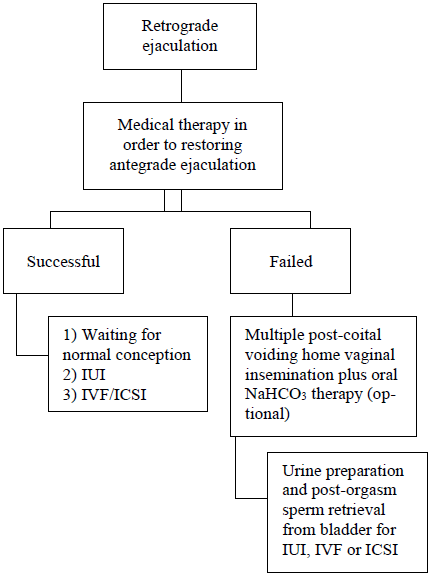

Figure 2. Sperm retrieval in retrograde ejaculation

Figure 2. Sperm retrieval in retrograde ejaculation

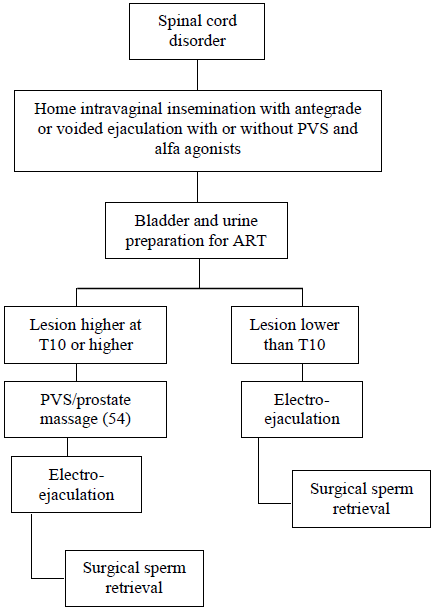

Figure 3. Sperm retrieval in SCD

Figure 3. Sperm retrieval in SCD

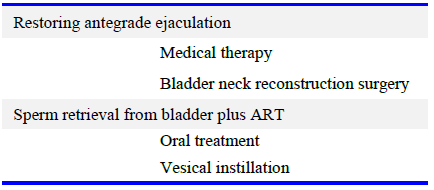

Table 1. Sperm retrieval in retrograde ejaculation

Table 1. Sperm retrieval in retrograde ejaculation

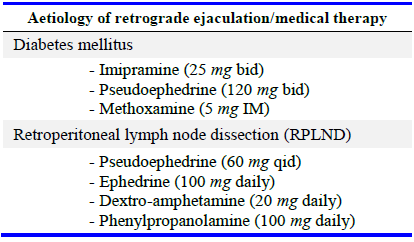

Table 2. Medical therapy for retrograde ejaculation

Table 2. Medical therapy for retrograde ejaculation

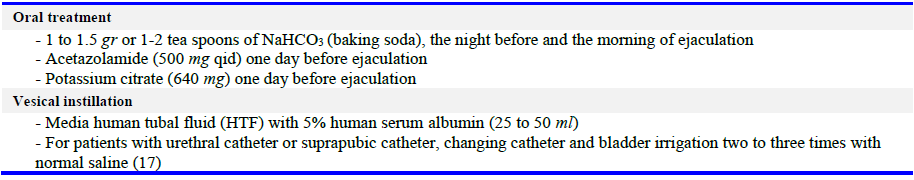

Table 3. Preparation techniques for retrograde ejaculation

Table 3. Preparation techniques for retrograde ejaculation

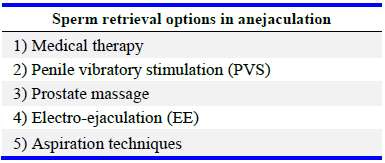

Table 4. Sperm retrieval techniques in anejaculation

Table 4. Sperm retrieval techniques in anejaculation

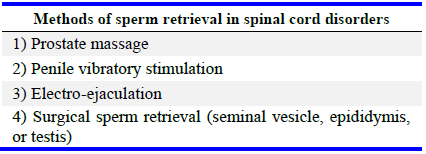

Table 5. Sperm retrieval methods in spinal cord disorders

Table 5. Sperm retrieval methods in spinal cord disorders

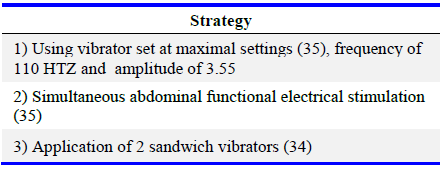

Table 6. Strategies to increase success rate of PVS

Table 6. Strategies to increase success rate of PVS
